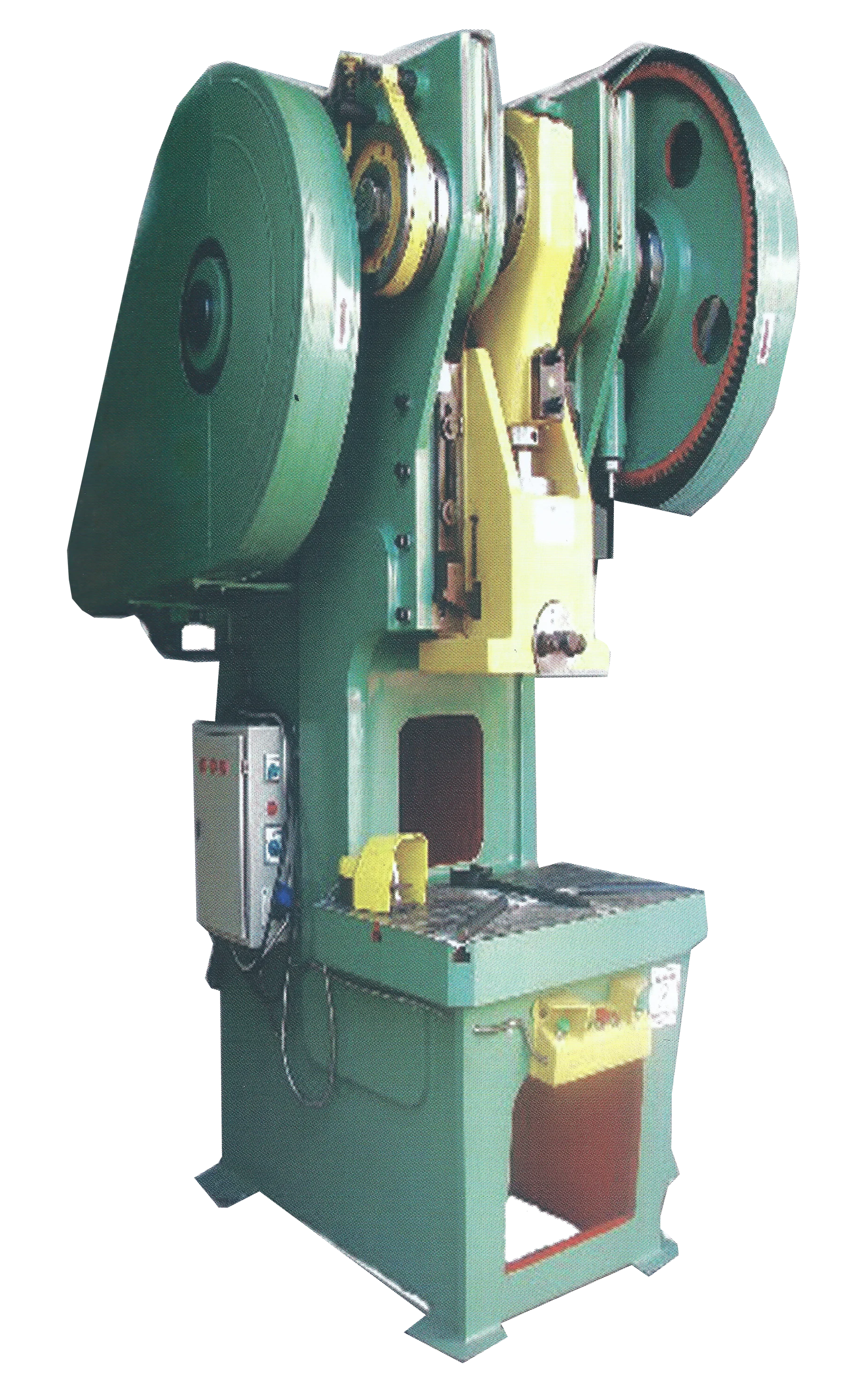

The video below belongs to our 100 Ton Press as a reference example.
125 Ton

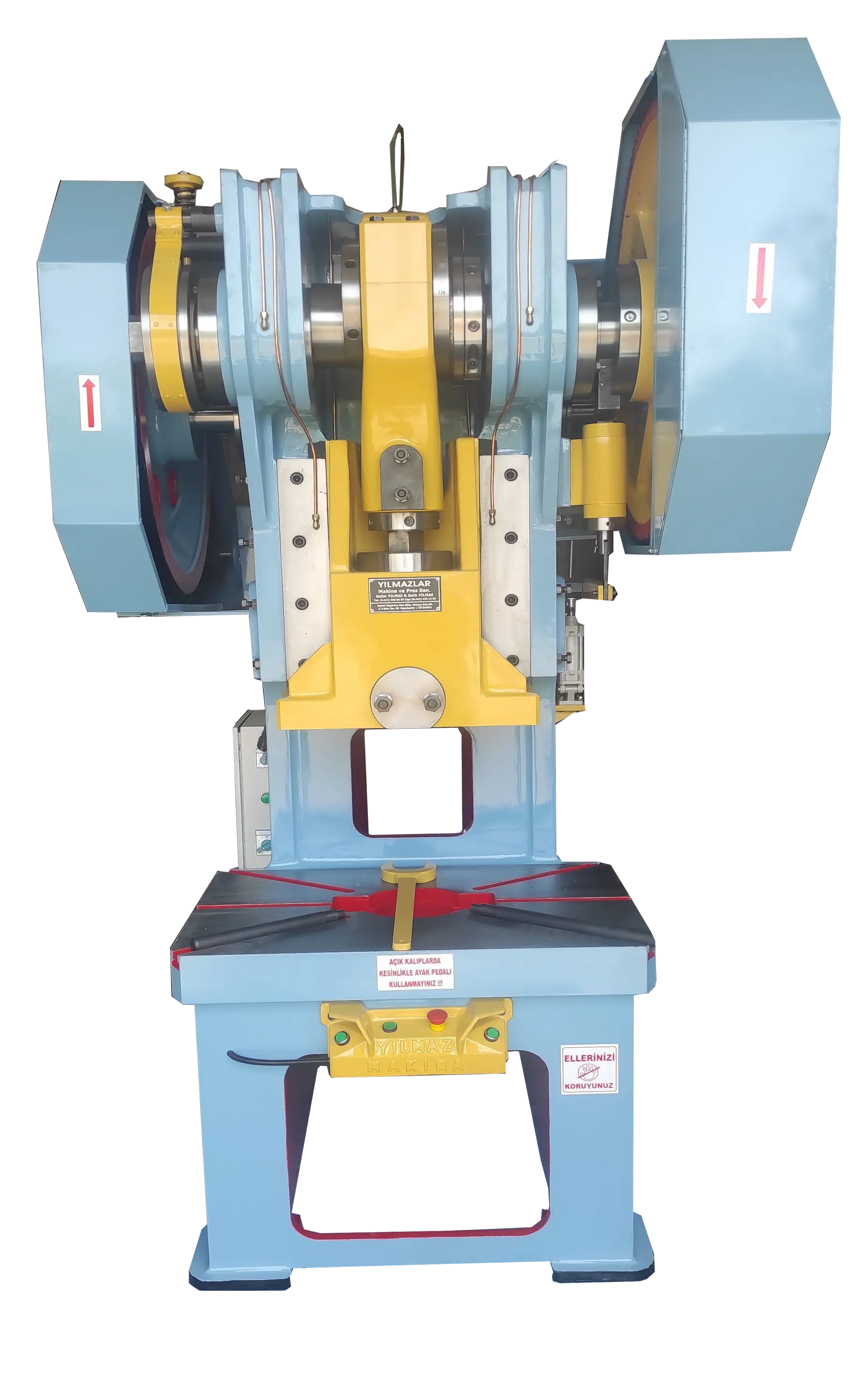

125 Ton Eccentric Press
Ideal for large-scale industrial manufacturing processes. Extra-wide table dimensions and a heavy-duty reinforced body meet the demands of the most challenging production applications.
Technical Specifications
125TonPress Capacity
130mmStroke Adjustment
55spmStrokes / Min.
460mmRam Distance
640/940mmTable Size
115mmTable Thickness
7.5 kW10 HPMotor Power
5000kgPress Weight
Equipment Features
Grade Steel CrankshaftHigh-quality alloy steel for long-lasting and durable power transmission.
Heat-Treated ComponentsClutch and flywheel bushings heat-treated to maximize wear resistance.
Pneumatic Operating SystemEquipped with a pneumatic system for high precision and safe operation.
Central Lubrication SystemManual and automatic lubrication infrastructure extends machine life.
Steel Inner Guard MechanismInner guard systems entirely made of steel for maximum workplace safety.
Die Release SystemSafety mechanism protects the die and press in the event of a jam.
Premium Electrical Infrastructure
Industrial-grade, top-quality hardware is utilized in the electrical panels and components for long-lasting and uninterrupted performance.
Bronze BearingsHigh-quality bronze cast material minimizes friction and extends component life.
Contact us for detailed information and a quote.
